Overview

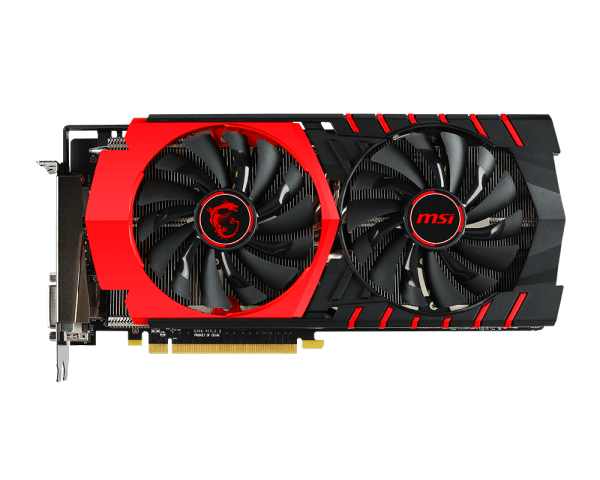

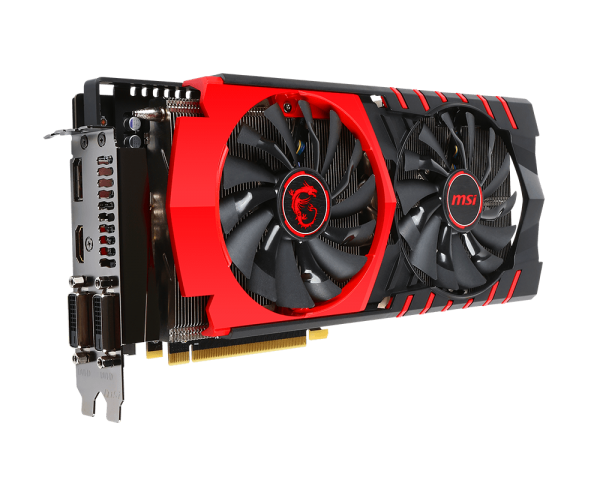

Twin Frozr V - Cooler, Quieter, Better GAMING
With every new generation of GPUs comes more performance. With every new generation of MSI Twin Frozr we give you less noise and heat!. We’ve listened to all your requests and the new Twin Frozr V is smaller, features stronger fans, generates less noise, keeps your graphics card and its components cooler and matches perfectly with your MSI GAMING motherboard including some funky LED lightning. We’ve spent 18 months on the development of the Twin Frozr V, including field testing in gaming cafés to ensure the cards have the quality and stability to give you the FPS you need
TORX Fan
Traditional Fan Blade
Maximizes downwards airflow and air dispersion to the massive heat sink below.
Dispersion Fan Blade
Generates more airflow to maximize air dissipation to heat sink. more airflow to maximize air dissipation to heat sink.
Advanced Dispersion Blade design generates 19% more airflow without increasing drag for supreme silent performance.
SuperSU PIPE
Enhanced dissipation efficiency
SuperSU Architecture is the best cooling solution for graphics cards. The GPU is cooled by a massive nickel-plated copper base plate connected to Super Pipes (8mm heat pipes) on the MSI GAMING series graphics card. Additionally, the new heat pipe layout increases efficiency by reducing the length of unused heat pipe and a special SU-form design.
zero frozr
Smart cooling, stay quiet.
MSI’s Twin Frozr V Thermal Designs are equipped with Zero Frozr technology which was first introduced by MSI back in 2008. Zero Frozr technology eliminates fan noise in low-load situations by stopping the fans when they are not needed. Compared to other graphics cards, there is no continuous hum of airflow to tell you there’s a powerful graphics card in your gaming rig. This means you can focus on gaming without the distraction of other sounds coming from your PC.
AIRFLOW CONTROL
Enhanced dissipation efficiency
MSI has fitted Twin Frozr coolers with the all new Airflow Control technology which guides more airflow directly onto the heat pipes by using special deflectors on the heat sink. In addition, this exclusive heat sink design increases heat sink surface area, greatly enhancing the dissipation efficiency.
Specifications
-
SKU
824142116791
-
Model Number
R7-370-GAMING-4G
-
Interface
PCI-E
-
Manufacturers Warranty
3 Year limited
Detailed Specs
-
Graphics Processing Unit
AMD Radeon™ R7 370
-
Interface
PCI Express x16 3.0
-
Boost / Base Core Clock
1070 MHz / 1020 MHz (OC Mode)
1030 MHz / 980 MHz (Gaming Mode)
975 MHz / 925 MHz (Silent Mode) -
Memory Size (MB)
4096
-
Memory Type
GDDR5
-
Memory Interface
256 bits
-
Memory Clock Speed (MHz)
5700 (OC Mode) / 5600
-

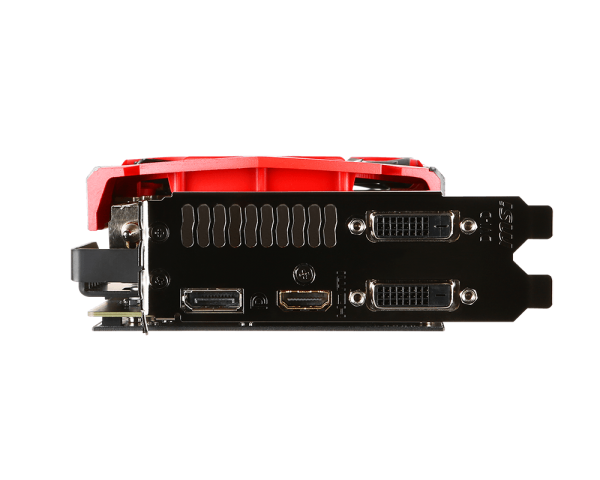

DVI Connectors
2 (Dual-link DVI-I x 1, Dual-link DVI-D x 1), Max Resolution: 2560 x 1600 @60 Hz.
-
HDMI Connectors
1 (version 1.4a)
Max Resolution: 4096x2160 @24 Hz (1.4a) -
DisplayPort
1 (version 1.2)
Max Resolution: 4096x2160 @60 Hz -
Maximum Displays
3
-
HDCP Support
Y
-
RAMDAC speed (MHz)
400
-
DirectX Version Support
12
-
OpenGL Version Support
4.4
-
Multi-GPU Technology
CrossFire™
-
Card Dimension(mm)
258x 132 x 37
-
Card Weight (g)
632
-
Power consumption (W)
110
-
Power Connectors
6-pin x1
-
Accessories
DVI to VGA Dongle x 1
