Overview
New Feature

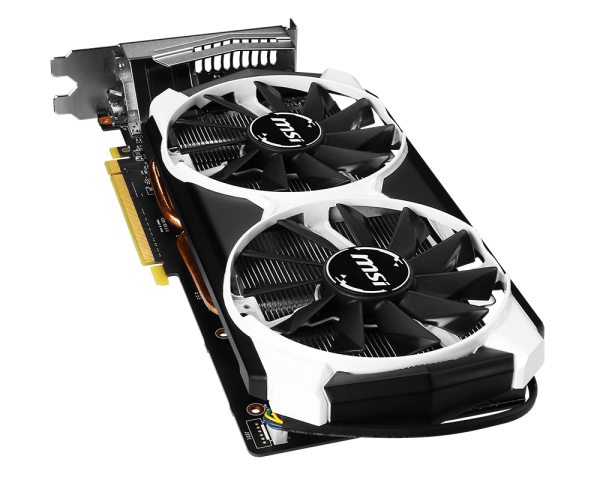

Armor 2X Thermal Design
- Delivers more airflow than traditional single fan thermal design.
- Huge heat sink provides better heat dissipation.
Propeller Blade Technology
- Produce 20% more airflow than traditional fan design.
- Produces less noise than traditional fan designs.
Airflow Control technology
- Deflects more airflow to heatpipes and improves airflow efficiency.
- Increases the heatsink area to enhance dissipation efficiency.
Military Class 4 Components
- Certified to MIL-STD-810G standards for top stability and quality.
- Built with Hi-c CAP, Solid CAP, and New SFC components.
Video Output Function
- Dual-link DVI-I x 1
- Dual-link DVI-D x 1
- HDMI x 1 (version 1.4a)
- DisplayPort x 1 (version 1.2)
Bundle MSI developed driver and utilities
MSI Live Update Series(Live Graphics Card BIOS & Live Graphics Card Driver)
Automatically online download & update Graphics Card BIOS & Drivers, reduce the risk of getting the wrong files, and never have the trouble on web site searching.
MSI Graphics Card Driver
Adobe Acrobat Reader
Microsoft® DirectX
Norton Internet Security™ 2008 60 days Trial
- Blocks online identity theft by phishing Web sites
- Detects and eliminates spyware
- Removes viruses and Internet worms automatically
- Protects against hackers
Specifications
-
SKU
824142111864
-
Model Number
GTX-960-2GDST-OC
-
Interface
PCI-E
-
Manufacturers Warranty
3 Year limited
Detailed Specs
-
Graphics Engine
NVIDIA GeForce GTX 960
-
Interface
PCI Express x16 3.0
-
Memory Type
GDDR5
-
Memory Size(MB)
2048
-
Memory Interface
128 bits
-
Core Clock Speed(MHz)
1178 (Boost Clock: 1241)
-
Memory Clock Speed(MHz)
7010
-
DVI Output
1 (Dual-link DVI-I), Max Resolution: 2560 x 1600 @60 Hz
-
Maximum Displays
4
-
HDMI-Output
1 (version 1.4a/2.0)
Max Resolution: 4096x2160 @24 Hz (1.4a), 3840x2160 @60 Hz (2.0) -
DisplayPort
3 (version 1.2)
Max Resolution: 4096x2160 @60 Hz -
Multi-GPU Technology
SLI, 2-way
-
Power consumption (W)
120
-
HDCP Support
Y
-
Recommended Power Supply (W)
400
-
HDMI Support
Y
-
Dual-link DVI
Y
-
Power Connectors
6-pin x 1
-
Display Output (Max Resolution)
2560x1600
-
Accessories
1x DVI to VGA Dongle
-
RAMDACs
400
-
DirectX Version Support
12
-
OpenGL Version Support
4.4
-
SLI Support
Y
-
Card Dimension(mm)
273 x 130 x 37
-
Weight
593
